What’s onboard with BRNKL Blue
Powerful features like connection to NMEA 2000, digital switching, Starlink and video cameras give you in-depth monitoring and security of your vessel anytime, anywhere.
Prices starting at $4000 USD.

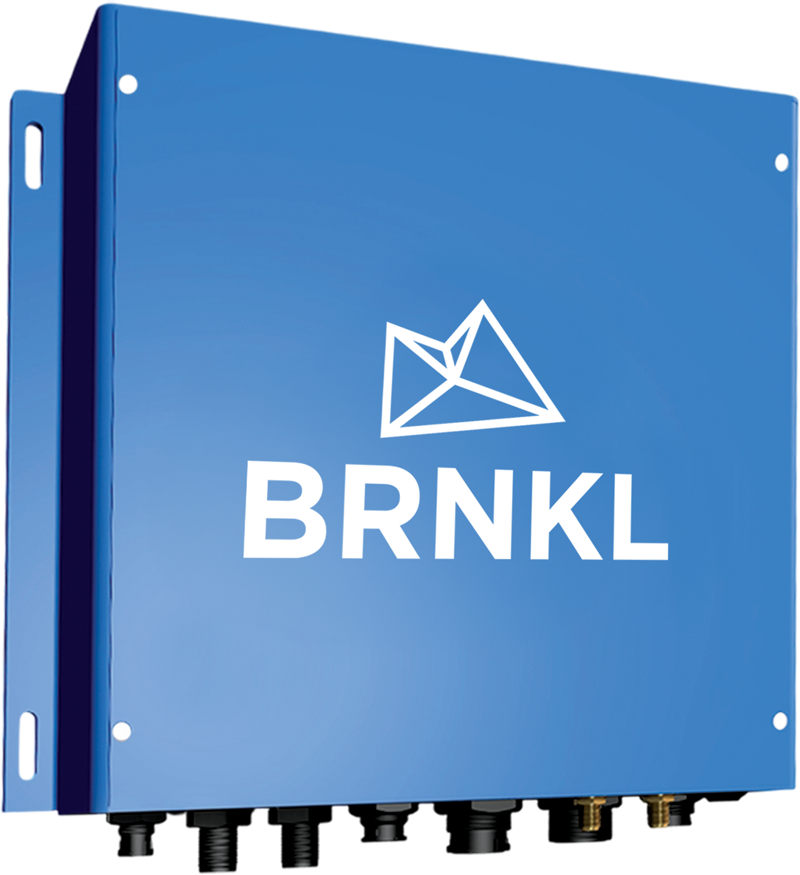

BRNKL Blue
24/7 vessel monitoring
Know what’s happening onboard 24/7 with BRNKL Blue. Monitor vessel systems, view and record live video, and get real-time customized alerts and updates – no subscription required.
All In One Place
Tech Specs
Connect to onboard systems
Connect to a wide range of onboard systems including NMEA 2000, ModBus, digital switching, onboard cameras, sensors, and more.

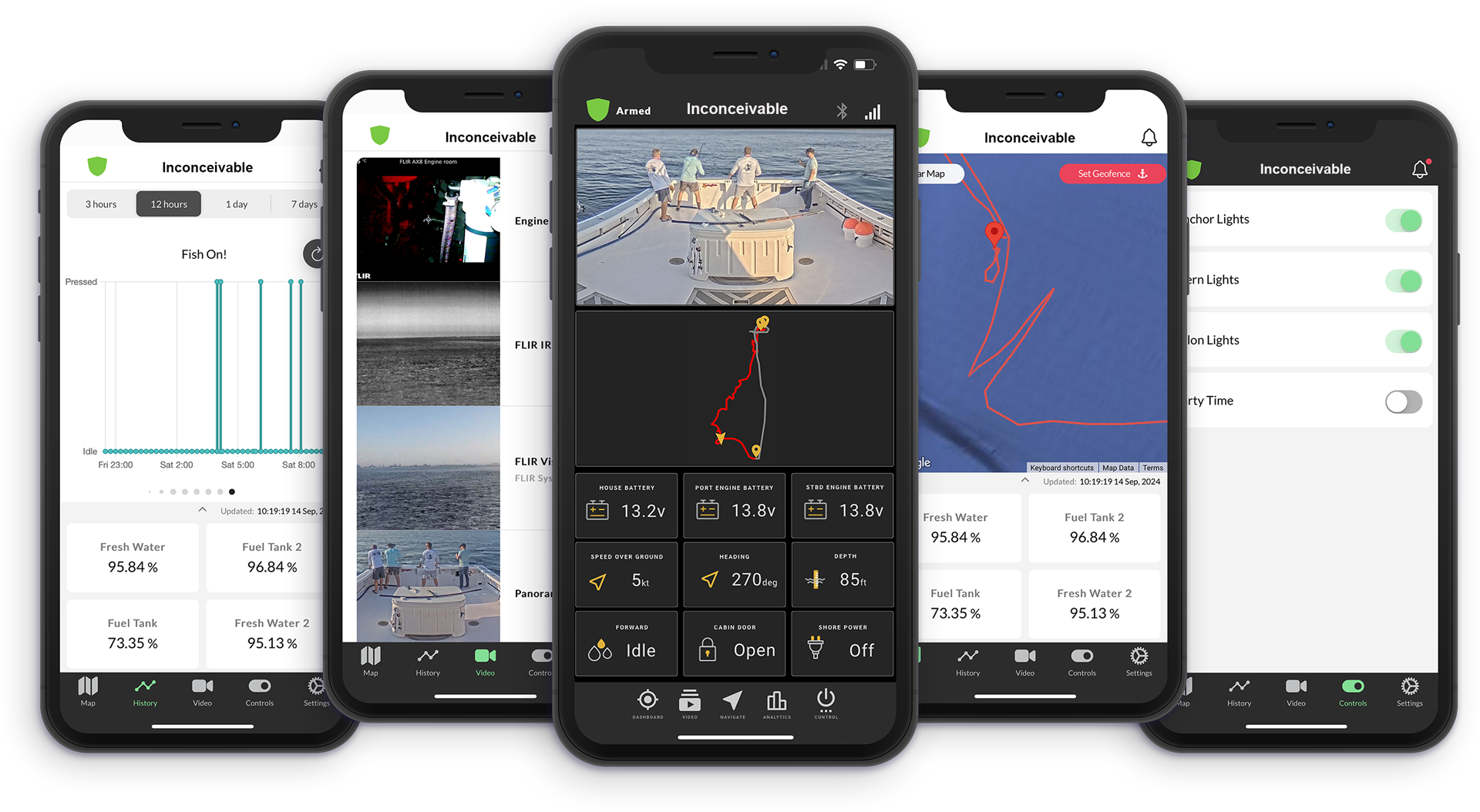

Monitor + create customized alerts
Monitor engines, bilge, batteries, power, environmental data, sensors, cameras and so much more. Create customized alerts and actions based on your preferences.
View, replay and record video
Connect to a range of compatible cameras to view, replay and record alert-triggered video clips.
Generate and export video clips
Easily export video clips to share with friends/family, or for security/insurance purposes.
Fully synchronized playback
Replay your trip or onboard event (a big catch!?) with synchronized video, vessel location, and engine data – in a single, time-aligned dashboard.
Connect to Starlink
BRNKL Blue connects to your Starlink, or other onboard communication system, ensuring 24/7 connectivity — no subscriptions needed.
| General | |
|---|---|
| Dimensions | 9.567″ x 8.425″ x 2.5197″ (200 mm x 200 mm x 70 mm) |
| Weight | 3.34 lbs (1.52kg) |
| Temperature range | -20°C to 75°C / -4°F to 167°F |
| Environment | Indoor (no IP rating) |
| Mounting | Flange |
| Power | |
|---|---|
| Average consumption | 500 mA |
| Maximum consumption | 2 A at 12 V DC |
| Internal battery capacity | 3000 mAh |
| Connections | |
|---|---|
| Power input | 10.5 V to 60 V DC |
| Analog/Digital selectable input (0-60 V DC) | 7 |
| Output (maximum 1.5 A) | 2 |
| Ethernet port | 1 |
| NMEA 2000 port | 1 |
| Serial port (RS232) | 1 |
| Wi-Fi antenna port (SMA) | 1 |
| GNSS antenna port (SMA) | 1 |
| Status Indicators | |
|---|---|
| Power, data, communication. |
| Warranty | |
|---|---|
| 2 year warranty |
| Storage | |
|---|---|
| Internal | 1 TB or 4 TB |
| Cloud | Optional |
| Storage | |
|---|---|
| GNSS | GPS/QZSS, Galileo, GLONASS, BeiDou |
| Accelerometer | +/-16g; 16384 LSB/g |
| Gyroscope | +/-125 deg/sec; 262.4 LSB/deg/sec |
| Camera Integration | |
|---|---|
| (Cameras sold separately) | |
| Supported protocols | RTSP |
| Application interface | ONVIF Profile S, ONVIF Profile T |
| Recommended brands: Axis, FLIR, Furuno, Garmin, Raymarine, HIKVision, Omnisense, VIVOTEK, Navico View a full list of supported video cameras at: https://help.brnkl.io/ |
|
| Camera Integration | |
|---|---|
| Included items: BRNKL, power cable, connector cable, USB to ethernet adapter, GNSS antenna, Wi-Fi antenna, security decal, documentation |
Get onboard
BRNKL works closely with dealer and installation partners globally who have been trained and vetted for quality. Find a dealer in your area or contact us directly for dealer support.
Find your perfect voyage
Packages designed for your adventure
Sport Fishing
Track every trip with real-time vessel monitoring so you can focus on the catch, not the conditions.
Sailing
Stay connected to wind, weather, and vessel health for safe, smooth adventures on the open water.
Cruising
Enjoy longer journeys with confidence, knowing your boat is always protected and in peak condition.
“I live four hours from the marina — BRNKL has saved me multiple drives. I check in on my boat from my phone and sleep better knowing it’s okay.”
MARINA SLIP HOLDER, BC
Book a demo
Get an in-depth look at BRNKL’s interface, features, integrations – and how we can best support your unique needs.
Fill the contact form and we’ll reach out to set up a 15 minute demo.
